❄️ XR Cryo Chambers

Cryo Innovations

“Safest and most technologically advanced cryo chamber on the market”
Our first responsibility is customer safety and ease of use.

---

🧊 Description

• Commercial-grade whole-body cryotherapy systems designed for wellness centers, fitness facilities, recovery clinics, spas, and medical practices
• Available in electric and liquid nitrogen (LN2) powered configurations
• Designed to support recovery, performance enhancement, and overall wellness
• Available in single-user and multi-user models depending on facility needs
• Built for reliable performance, safety, and user-friendly operation

⚙️ Features

• Commercial-grade cryotherapy technology
• Professional whole-body cryotherapy treatments
• Fully automated operation (electric models)
• Advanced safety monitoring systems
• User-friendly controls and interface
• Durable construction for commercial environments
• Fast cool-down performance for efficient scheduling
• Suitable for spas, gyms, wellness centers, and medical facilities
• Electric and LN2 options available

📦 What's Included

• XR Cryo Chamber (selected model)
• Integrated control system
• Standard operating accessories
• User documentation
• Manufacturer warranty
• Training and support resources

📊 Specifications

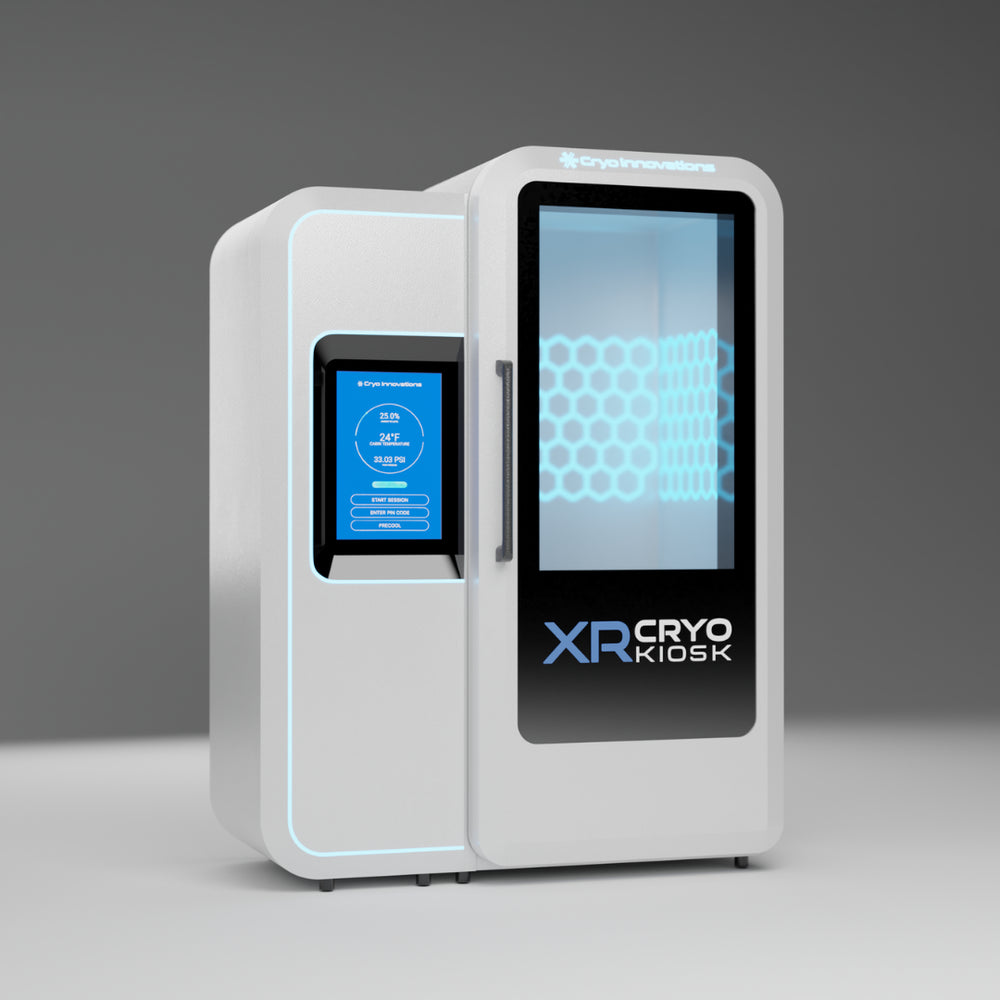

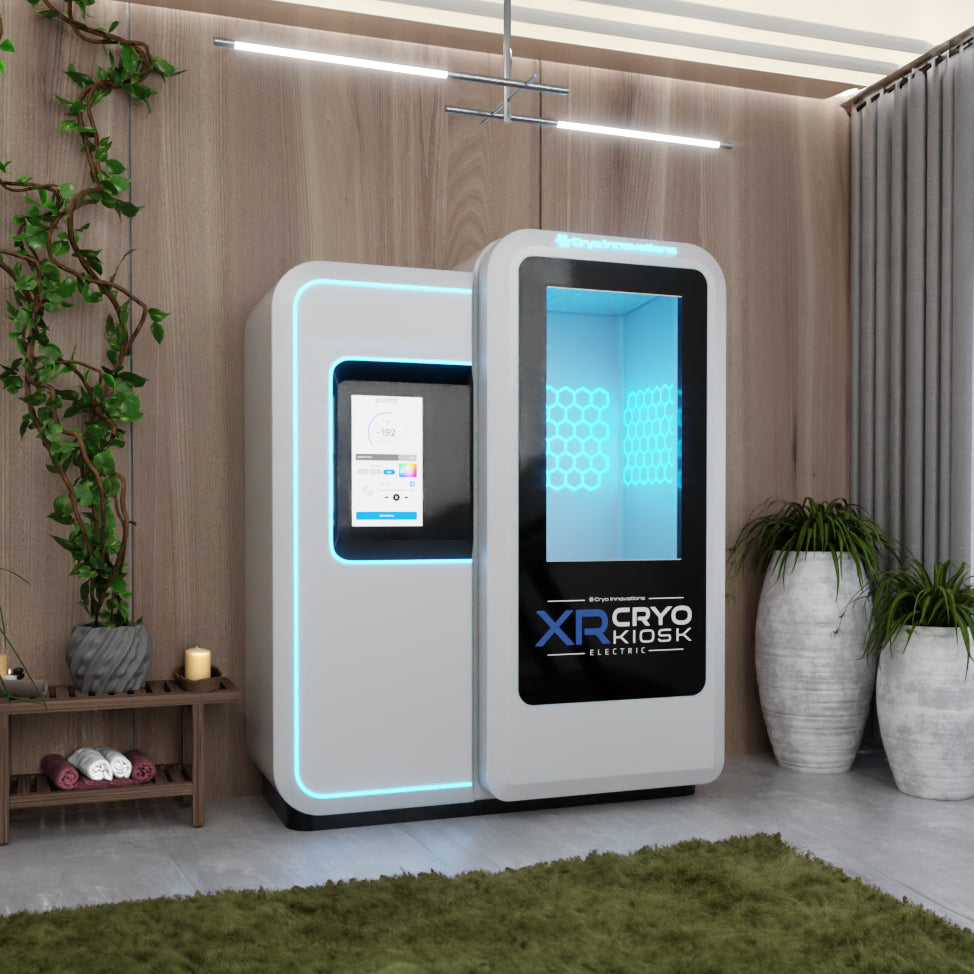

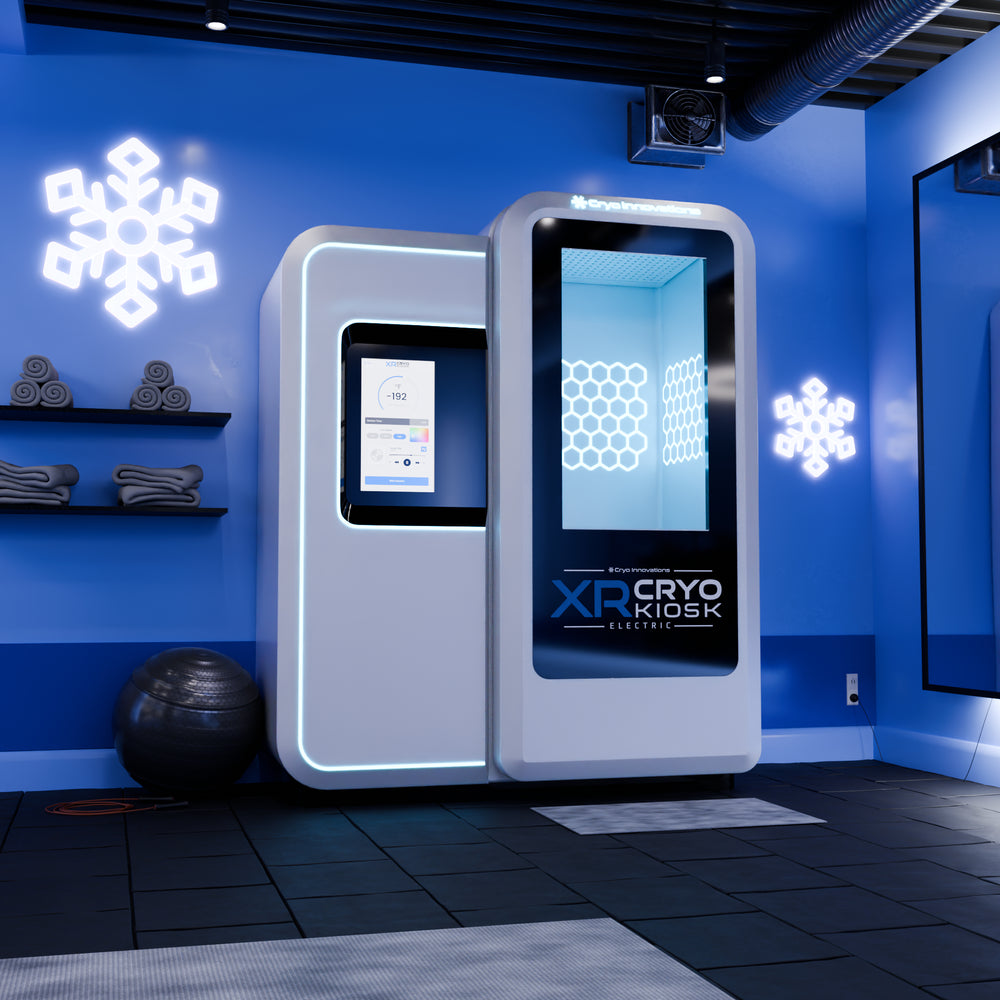

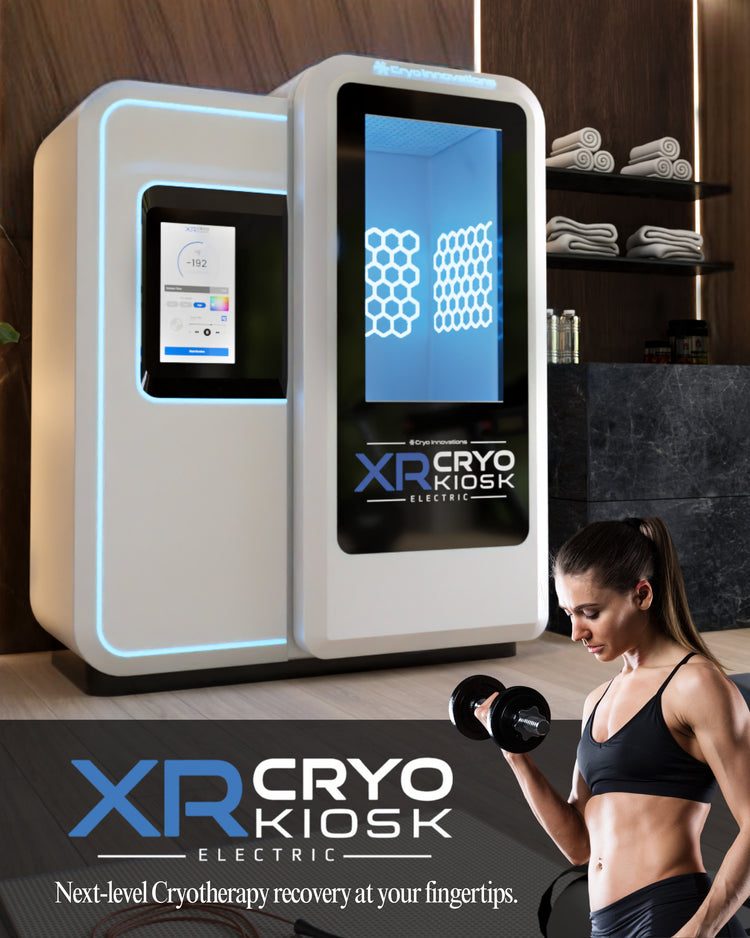

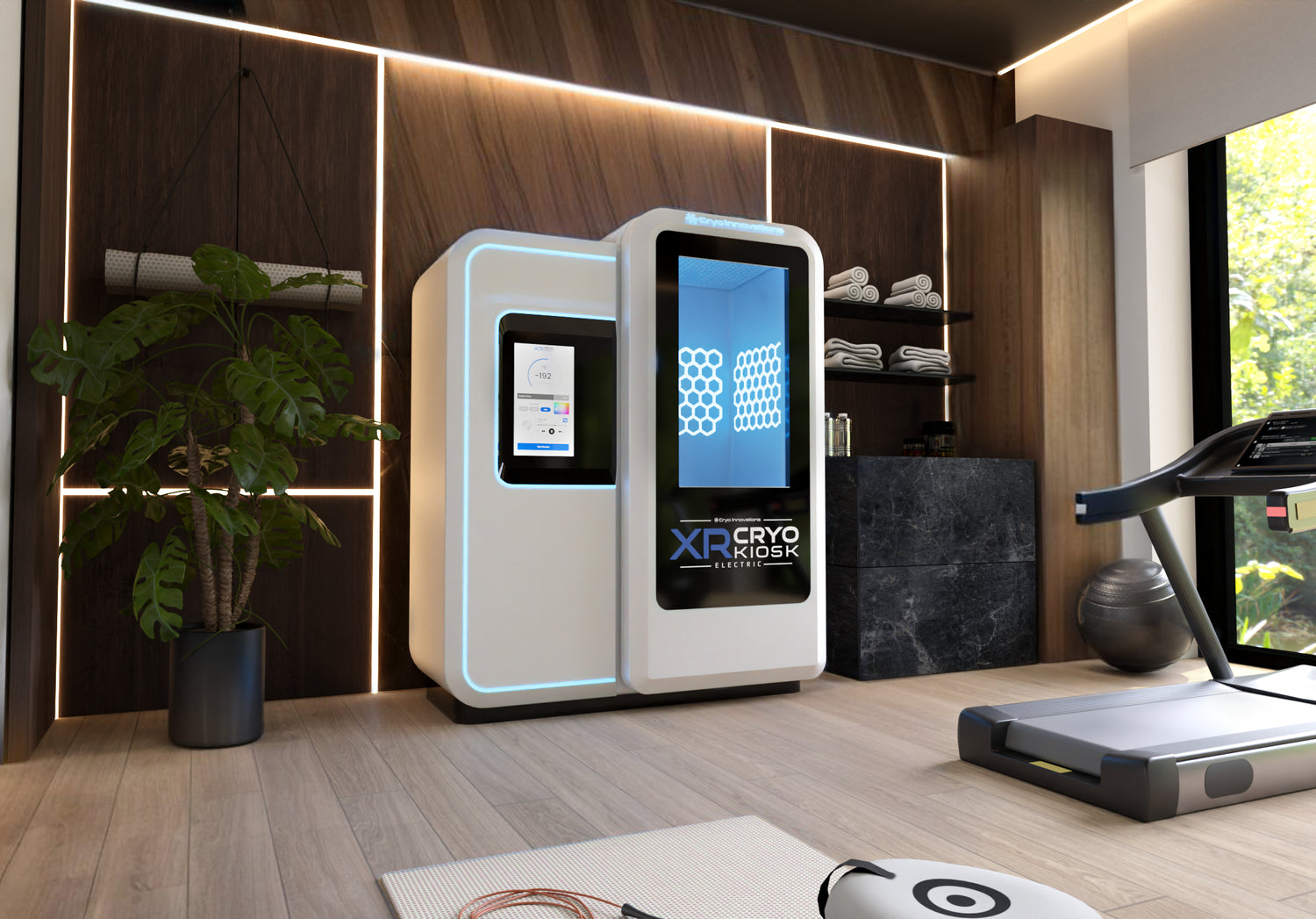

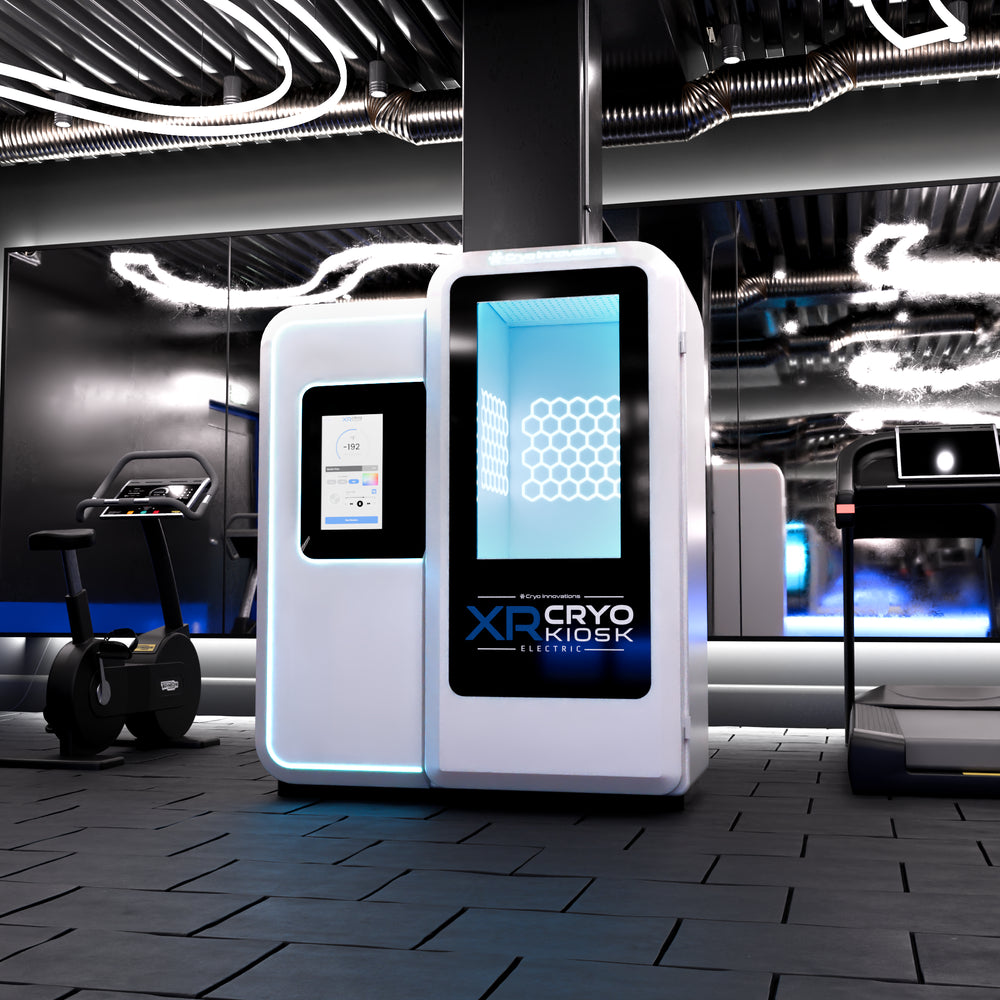

XR Cryo Kiosk Electric (1 Person)

• Dimensions: 93.75" H x 34.5" W x 51.75" D (220 cm x 130 cm footprint)
• Weight: 605 lbs
• Shipping weight: 1000 lbs
• Electrical: 120VAC 60Hz – 15A circuit
• Power draw: 0.084 kW average / 0.780 kW max
• Current: 0.5A average / 6.5A max
• Cooling performance: up to -150°F
• Cool down time: 5–10 minutes
• Session time: 1–3 minutes

XR Cryo Kiosk Electric (2 Person)

• Expanded dual-user cabin design
• Electrical requirements vary by configuration
• Full specifications available upon request

---

XR Cryo Chamber Lite (LN2)

• Liquid nitrogen-powered system
• Compact commercial design
• Full specifications available upon request

LN2 Consumption

• Cool down to -150°F: 1.5–3 liters LN2
• Per treatment: 2–3 liters LN2
• Efficiency: approx. 230 liters = 35–42 treatments

---

🛡️ Compliance & Safety

• Electrical: UL Listed (File E474341)
• Designed in accordance with:
  • ASME B31.1 and B31.3
  • International Fire Code
  • International Mechanical Code
  • NFPA 55
• Built-in safety monitoring systems for user protection

🌬️ Installation Requirements

• Requires ceiling exhaust ventilation system (vented outside, independent system)
• Airflow requirement: 1 CFM per 1 sq. ft. of room size
  • Example: 100 sq. ft. = 100 CFM
  • Recommendation: round up for safety (e.g., 110 sq. ft. → 150 CFM)
• LN2 Dewar supply pressure: 35 PSI
• Do not place LN2 tank directly above unit
• Recommended placement: approx. 3 ft to the right of chamber

---

📄 Documentation

• Product brochure
• Specification sheet
• User manual
• Installation guide
• Warranty information
