XR Cryo ISO

Description

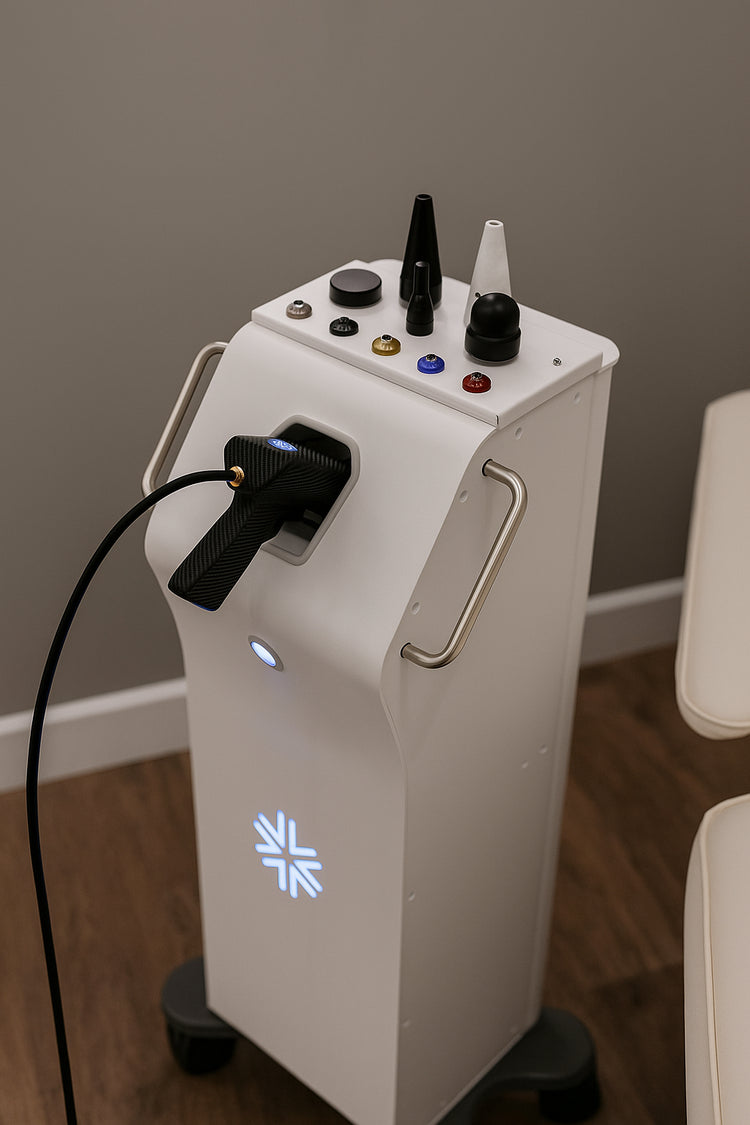

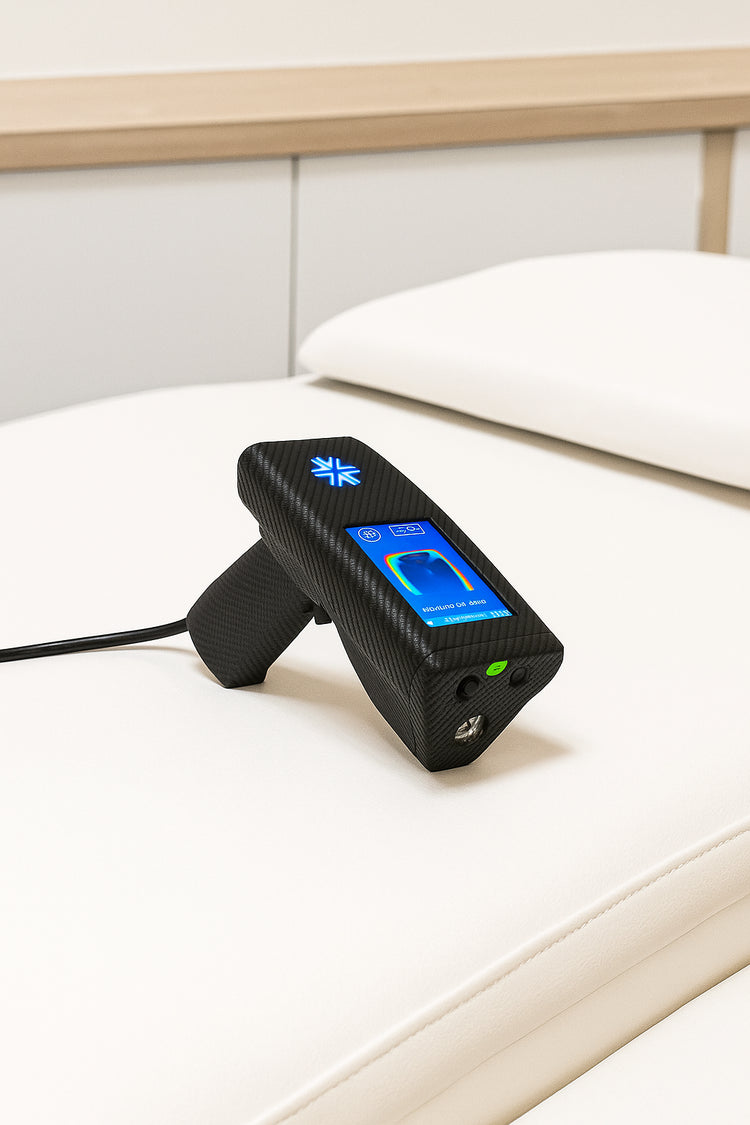

The XR Cryo ISO is a localized cryotherapy device designed to deliver targeted cold CO₂ therapy to specific areas of the body and face. Featuring advanced thermal imaging technology, distance sensing, and Wi-Fi connectivity, the XR ISO provides precise, efficient treatment for wellness, recovery, and aesthetic applications. Its compact, mobile design makes it suitable for clinics, wellness centers, fitness facilities, beauty salons, and home use.

---

Features

• Localized cryotherapy using CO₂ technology

• Pinpoint treatment for targeted areas of the body and face

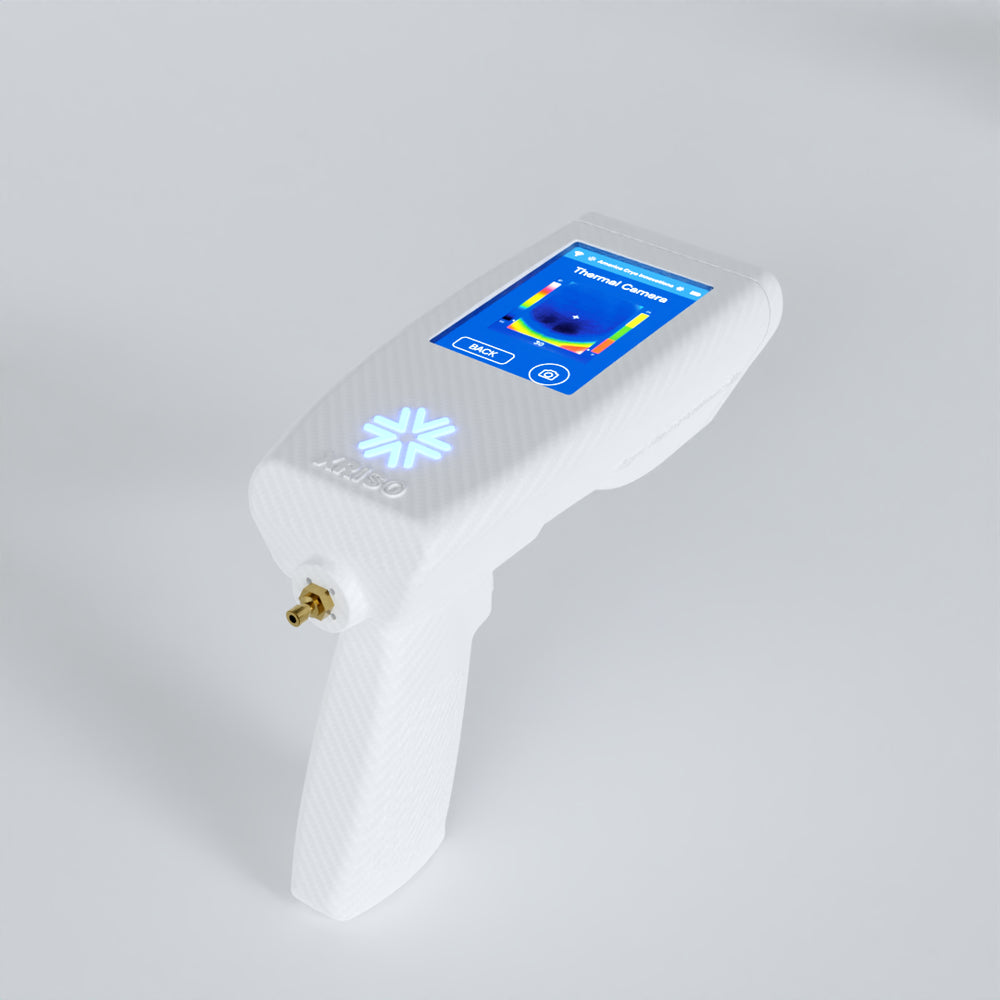

• Integrated thermal imaging system

• Real-time temperature monitoring

• Touchscreen display interface

• Built-in distance sensing technology

• Wi-Fi connectivity for reporting and tracking

• Rechargeable lithium-ion battery

• Compact and portable design

• UL Classified

• Made in the USA

---

What's Included

XR ISO Lite

• XR ISO device

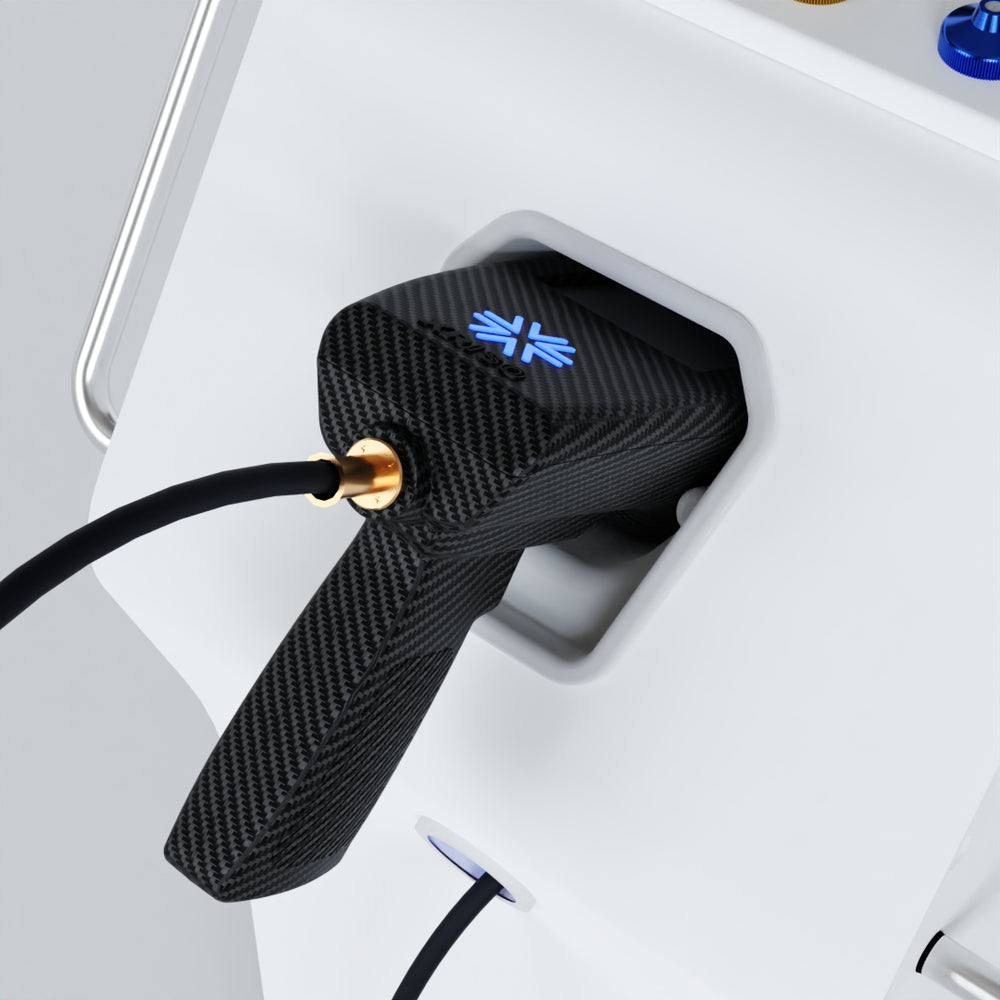

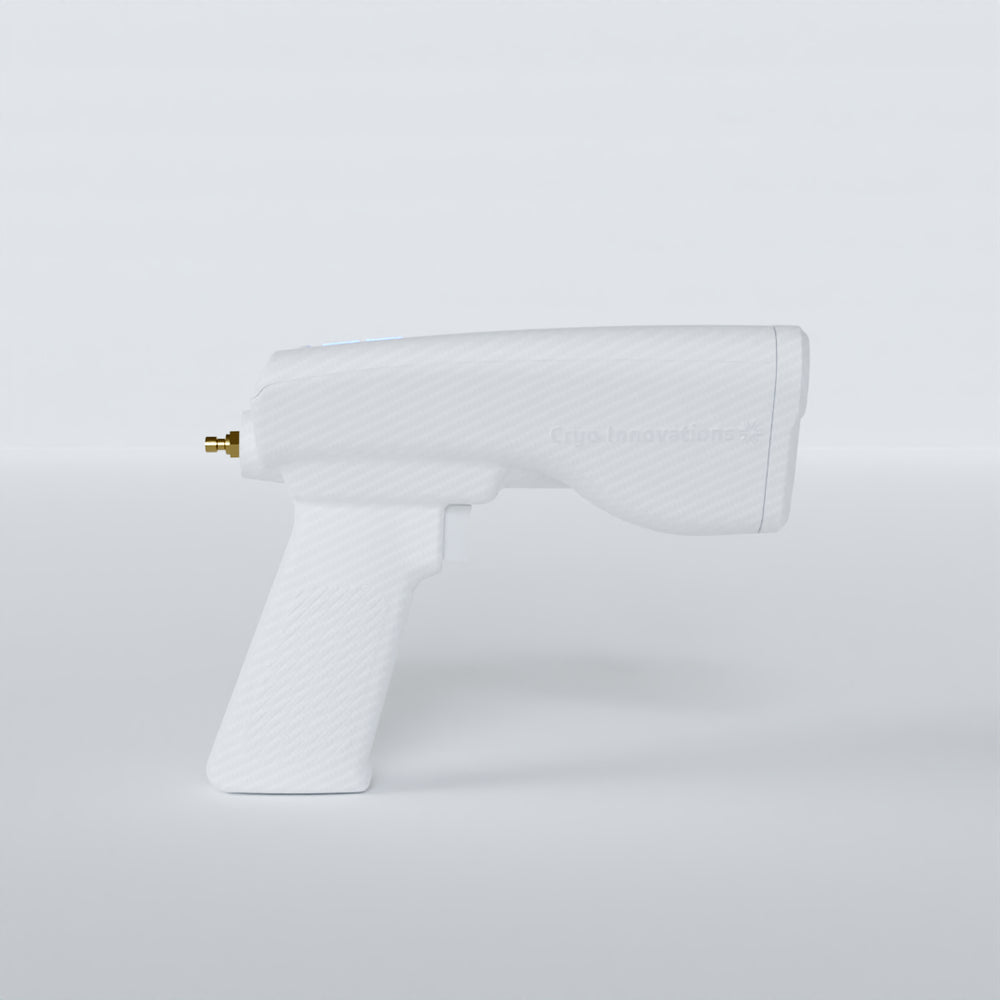

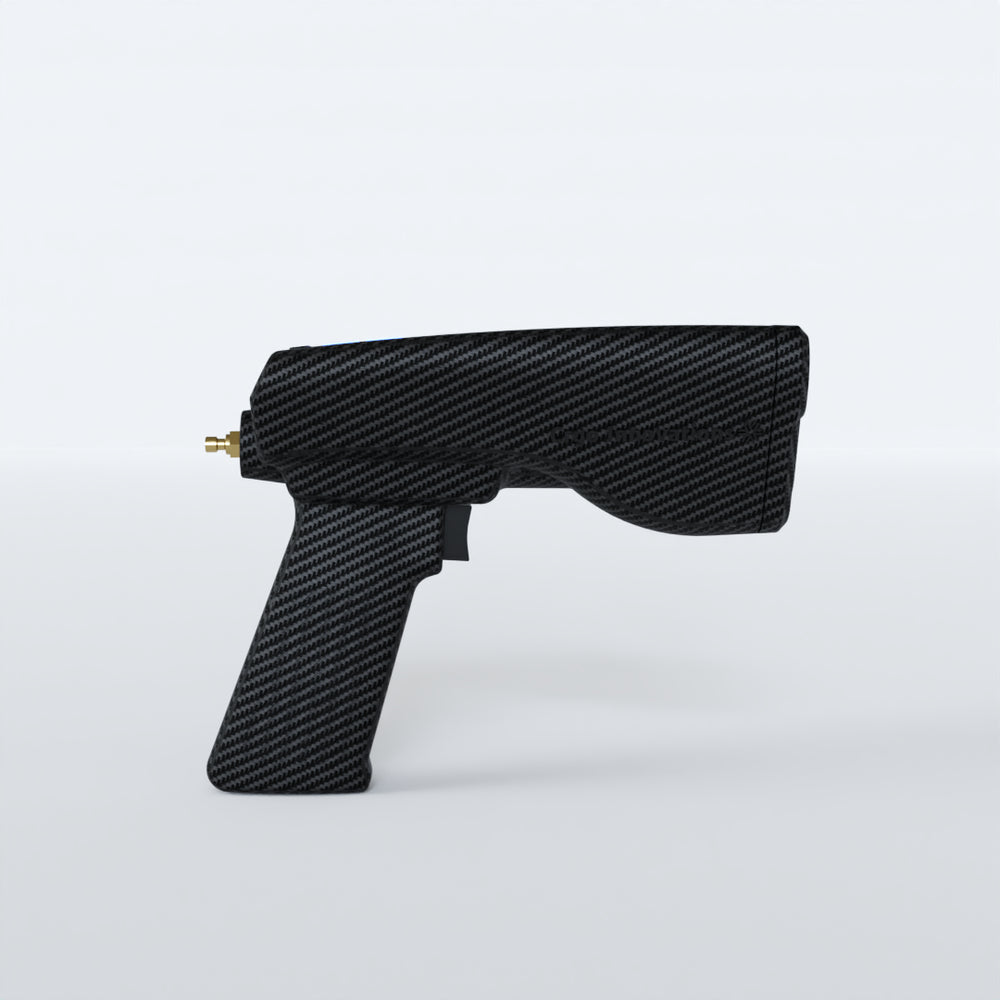

• Thermal gun

• 6 ft hose

• Aesthetic nozzles

• Recovery nozzles

XR ISO Travel Cart

• XR ISO device

• Thermal gun

• 6 ft hose

• Aesthetic nozzles

• Recovery nozzles

• Travel cart

• 20 lb CO₂ cylinder

XR ISO Spa Cart

• XR ISO device

• Thermal gun

• 6 ft hose

• Aesthetic nozzles

• Recovery nozzles

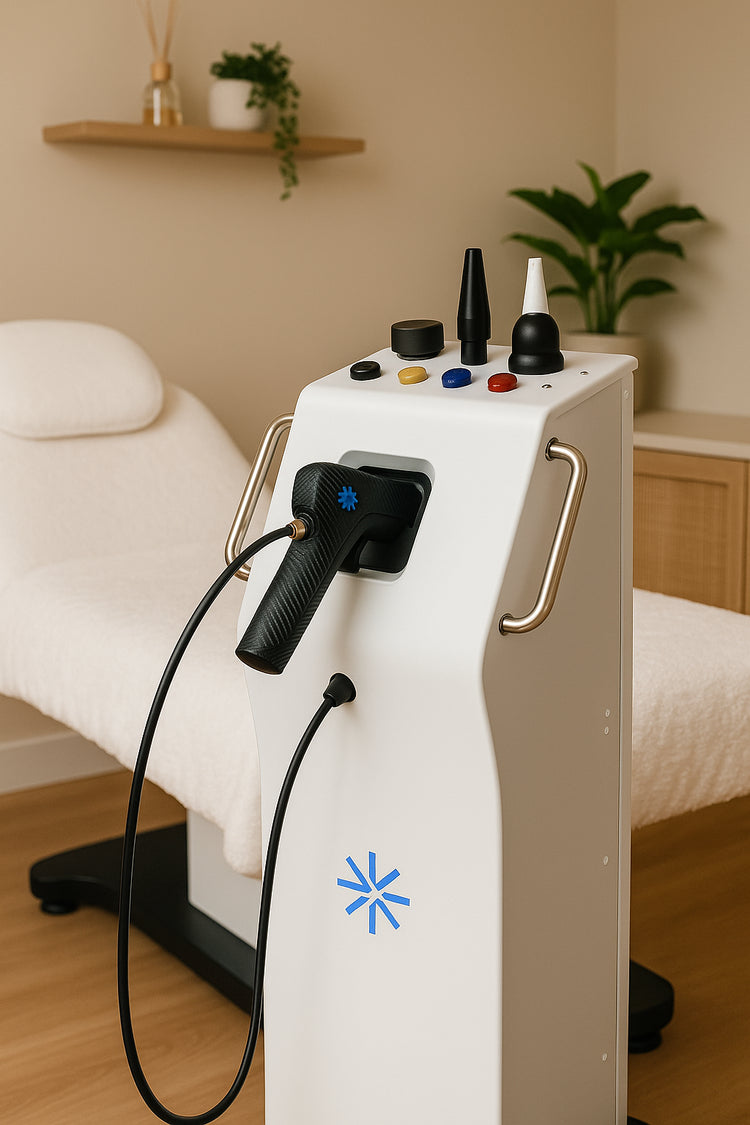

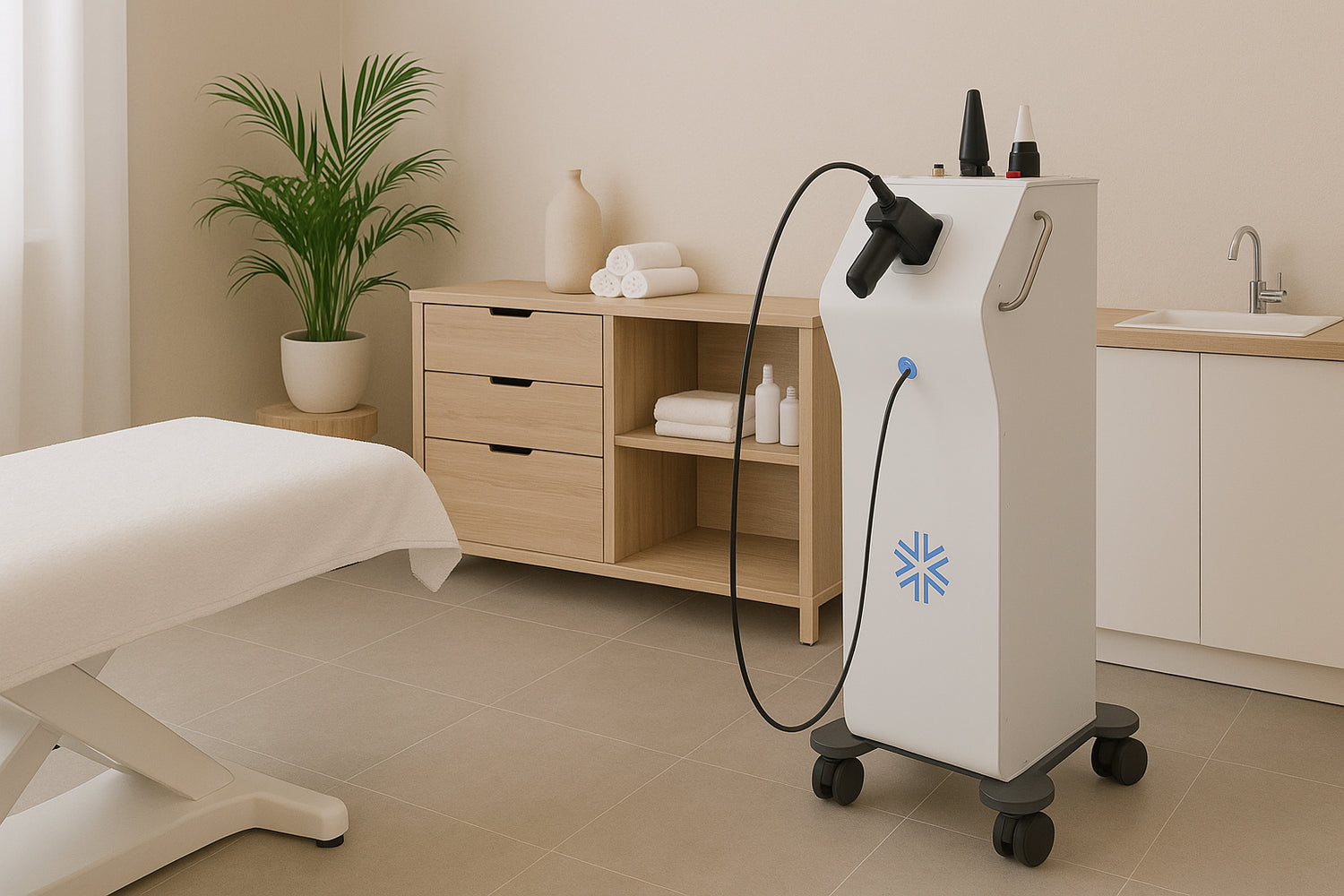

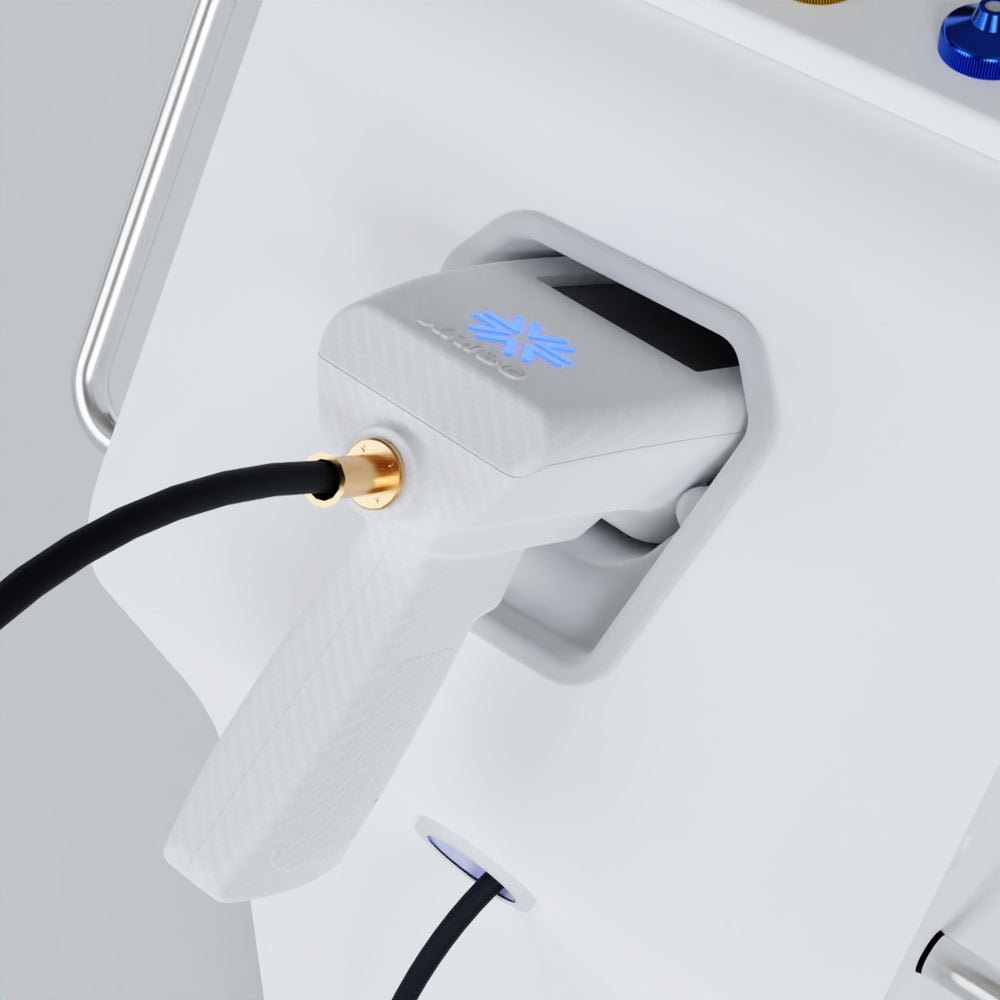

• Deluxe spa cart with holster

• 20 lb CO₂ cylinder

---

Specifications

Display

• 320 × 480 pixel touchscreen

Distance Sensor

• Measuring Range: 2–40 in (5–100 cm)

• Laser Frequency: 904 nm

• Laser Safety: Class 1 Laser Compliant (IEC 60825-1:2014)

Power

• Power Requirements: 5VDC @ 2A Max (10W)

• Battery Type: Rechargeable Lithium-Ion

• Battery Capacity: 3.7V, 4400 mAh (16.3 Wh)

• Battery Life: Minimum 5 hours continuous spraying

• Charge Time: Approximately 6 hours

Connectivity

• Wi-Fi Frequency: 2.4 GHz

Thermal Imaging

• Temperature Monitoring Range: 14°F to 284°F (-10°C to 140°C)

• Thermal Spectral Range: 8 μm to 14 μm

• Thermal Frame Rate: 8.7 Hz

Safety Features

• Auto Shut-Off (Non-Thermal Display): 5 minutes

• Auto Shut-Off (Thermal Display): 25 minutes

System

• CO₂-based cryotherapy system

Dimensions

• Main Unit Dimensions: 32 in × 22 in × 16 in

• Additional component dimensions available upon request

---

Documentation

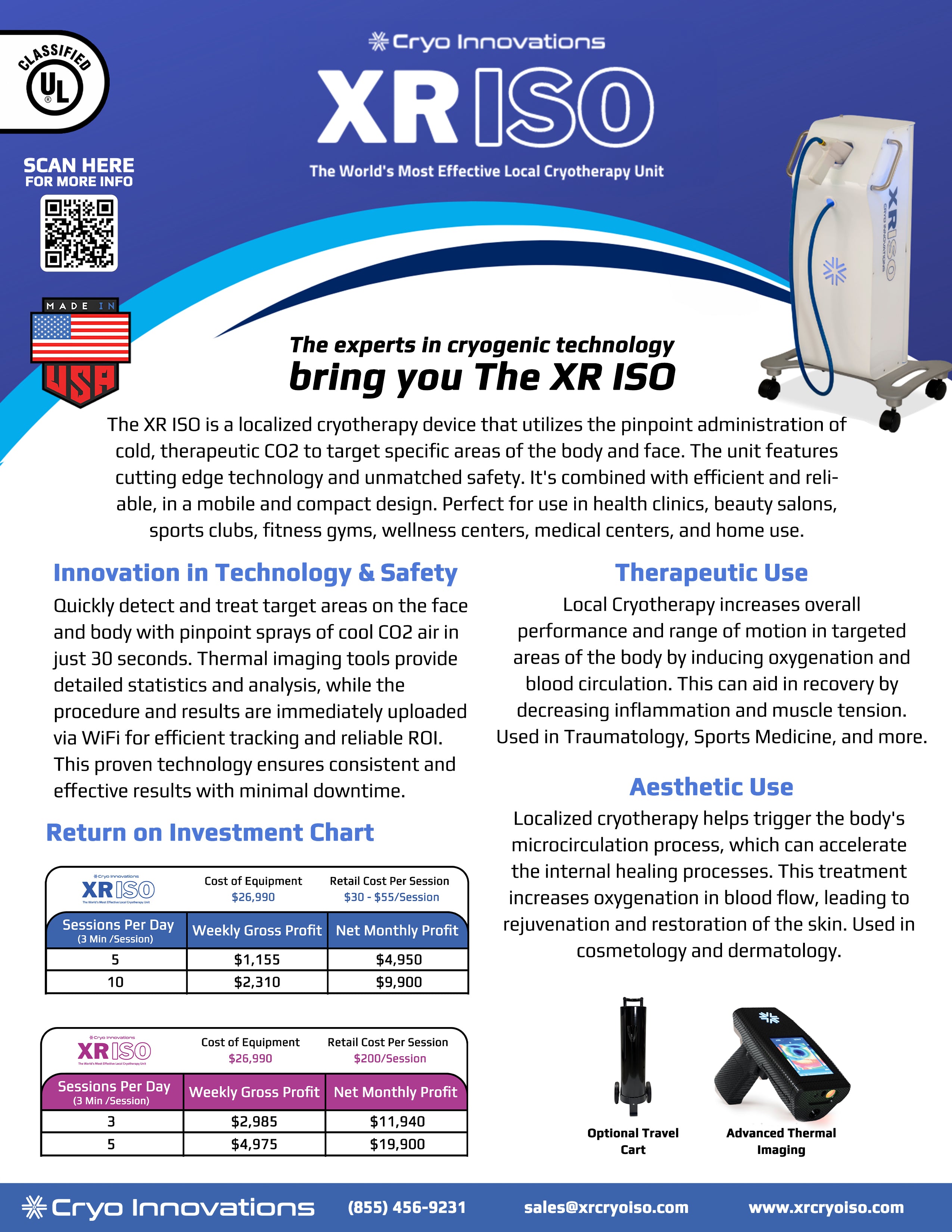

• Product Specification Sheet (PDF)

• User Manual (PDF)

• Warranty Information

• Training Documentation
